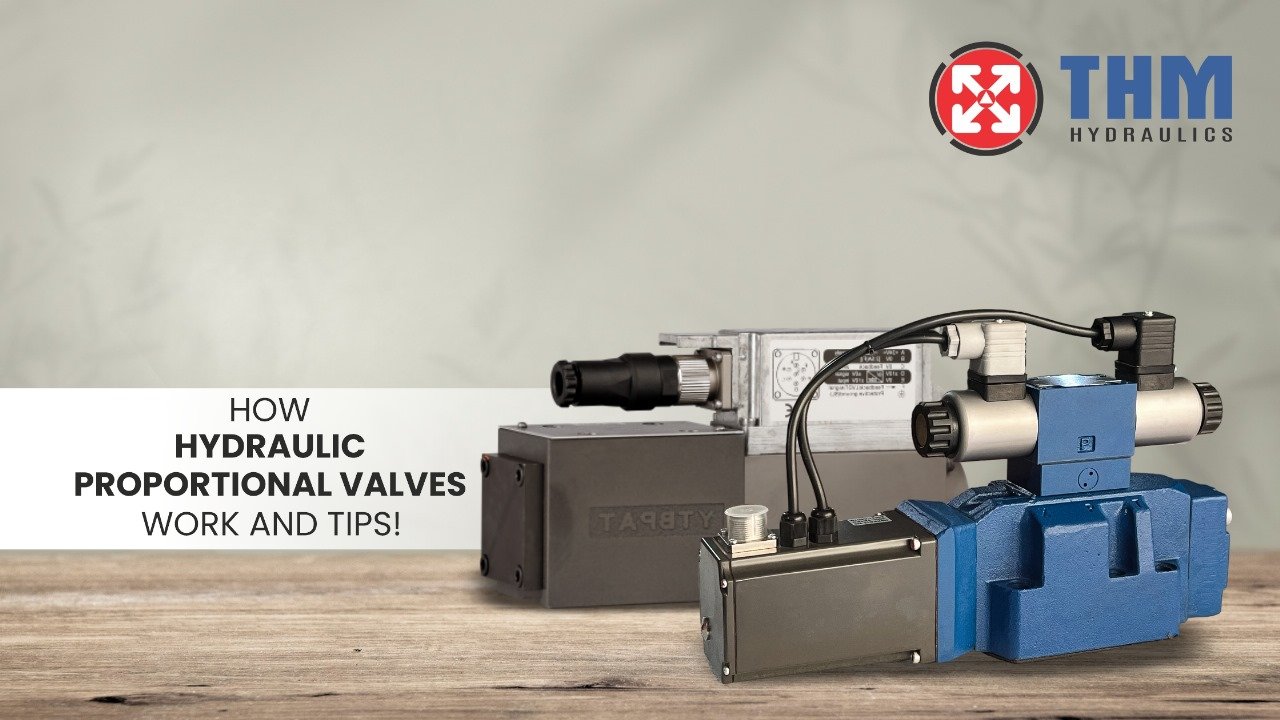

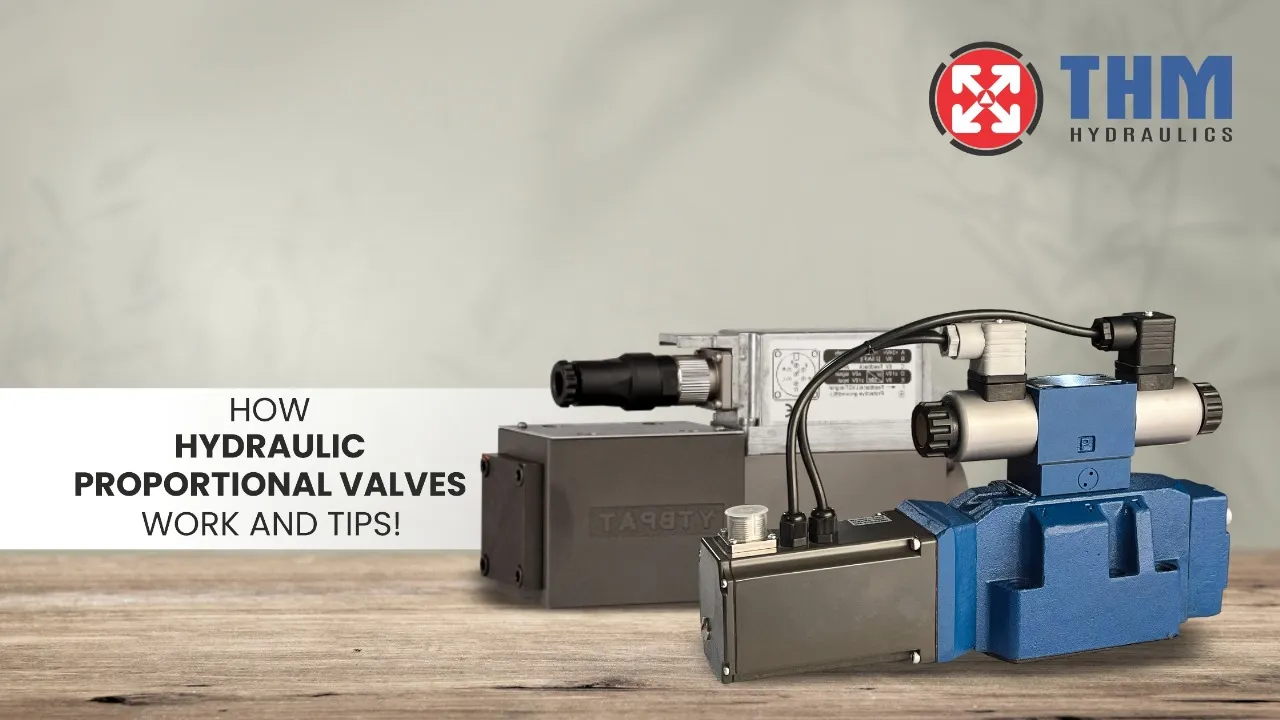

How Hydraulic Proportional Valves Work and Tips

How Hydraulic Proportional Valves Work and Tips

The hydraulic proportional valve introduces advanced control systems to hydraulic equipment. Current industrial operations need both exact measurements and easy system controls. Hydraulic systems perform better when users can precisely adjust pressure flow and direction in mobile machinery manufacturing automation and hydraulic presses.

Examines hydraulic proportional valve technology and shows why we lead other companies in supplying high-performance hydraulic valve solutions.

What Purpose Does a Hydraulic Proportional Valve Serve?

A hydraulic proportional valve works as a proportional control device that helps users set hydraulic system flow and pressure settings. The hydraulic proportional valve moves between its closed and open positions according to electrical signals, unlike standard on/off valves.

The ability to adjust valve position makes proportional valves so effective. These valves deliver smooth, precise control that matches their best use in automated systems that need high accuracy.

How Does a Hydraulic Proportional Valve Work?

The hydraulic proportional valve connects electrical signals to hydraulic power to produce its output. This describes the typical way to operate a valve.

1. The controller delivers electrical signals to the valve solenoid, which then converts them into analog or digital outputs.

2. The solenoid generates a magnetic field that moves a valve spool.

3. The valve spool directs hydraulic fluid as it moves through the valve system.

4. The valve moves hydraulic fluid by changing pressure levels through various signal power settings. The valve offers better control options in advanced operations than simple valve designs.

Advantages of Using Proportional Control Valves

Modern operations use hydraulic proportional valves to gain multiple advantageous features.

  • Precise Control: Adjust flow or pressure gradually, not just on or off.
  • Better valve control saves energy.
  • Compact and Integrated: Reduces the need for multiple valves.
  • Smooth Operation: Eliminates sudden jerks and shocks in machinery.
  • Automation Ready: Compatible with PLCs and computer-controlled systems.

Companies in plastic injection molding, material handling, press operations, and farming sectors pick these valves to serve their production requirements.

Tips for Using Hydraulic Proportional Valves Efficiently

Follow these professional guidelines to make your proportional valve perform optimally and last longer.

1. Choose the Right Valve

Use a valve that fits your application requirements, including fluid movement and response timing. THM Huade Hydraulics provides industrial customers with a complete selection of tested hydraulic valves for their applications.

2. Ensure Proper Electrical Connection

The performance of proportional valves depends on precise electrical signals. Connect your control system to the valve using quality wires and confirm its compatibility with the valve model.

3. Clean Hydraulic Fluid

The presence of dirt in hydraulic fluid harms precision valves more than any other factor. Use proper filters to clean the hydraulic fluid and monitor its quality levels.

4. Avoid Overloading

Keep these limits for pressure rating and flow from the datasheet. High pressure on the valve breaks its internal components which leads to shorter lifespan.

5. Routine Maintenance

Hydraulic proportional valves stay durable but require regular inspections to find small component problems before they become major problems.

6. Use Proper Mounting

Set vibration-free mounts near the actuator with valves to decrease line loss and speed up valve reactions.

Customers trust THM Huade Hydraulics as a reliable company

THM leads the market by delivering top quality innovative hydraulic products. They supply different industries with hydraulic valves through their proportional control valves and product range.

Their proportional valve offerings feature:

  • High response times
  • Compact design
  • Strong solenoids for accurate spool movement
  • Compatibility with all standard control systems

You can easily install THM hydraulic valves into your system during machine updates or new product development.

Applications of Hydraulic Proportional Valves

You will discover hydraulic proportional valves working in these applications:

  • Injection molding machines need hydraulic proportional valves to control their clamping and injection functions.
  • Agricultural machinery: Controlling direction and speed of equipment.
  • Forming equipment needs to keep its pressure levels steady.
  • Our system manages the actuators that move boom lifts and cranes in mobile equipment.

These systems share the common purpose of enhancing control with reliability and performance results.

Conclusion

Learning about hydraulic proportional valve operation helps users design better, responsive, and efficient hydraulic systems. The modern automation sector depends on these valves to deliver smooth movement and save energy.

Indian industries and global markets can achieve optimal hydraulic system performance when they use THM Huade products and follow these practical usage tips.

To improve your systems with modern proportioning valves, you should pick high quality parts and maintain them properly for lasting results.
