Description

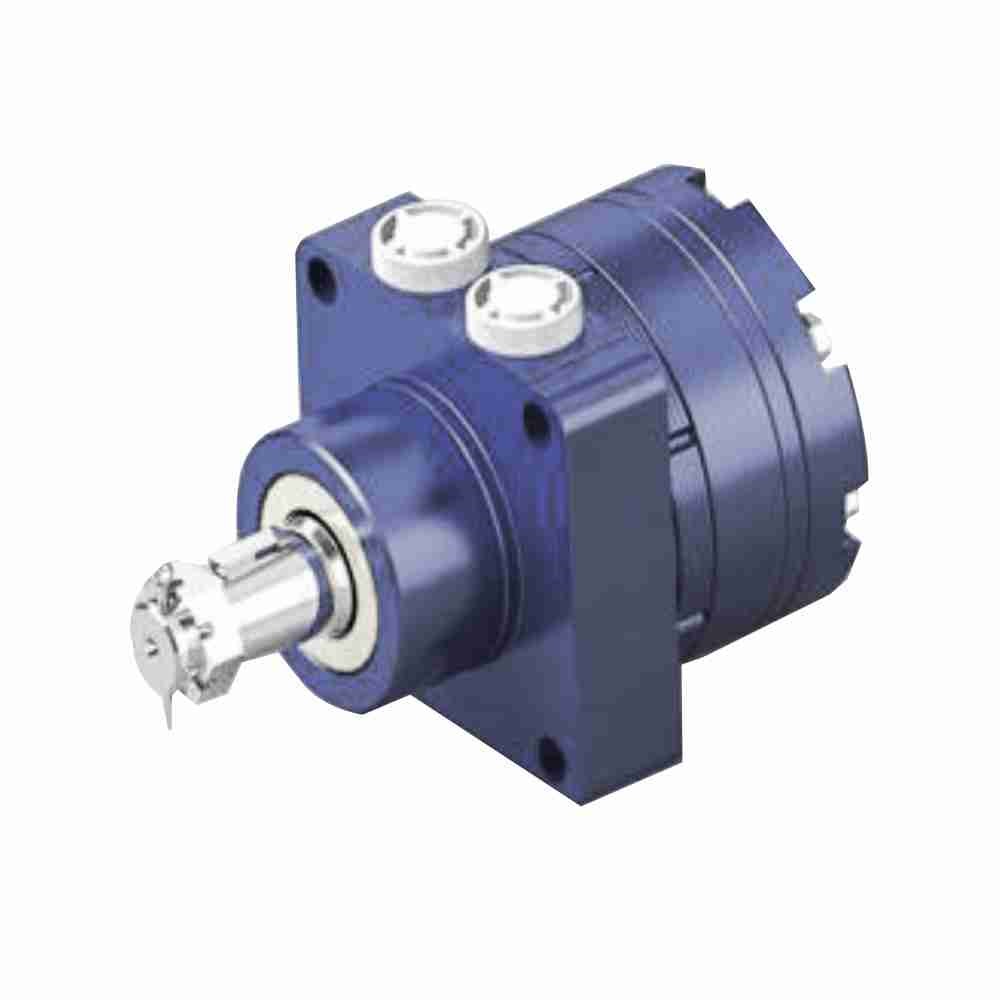

THM – BME Series – Hydraulic Orbital Motor
BME series motor has advanced geroler gear set design, they are suited for high pressure high efficiency, low speed applications. It can Keep high volume efficiency, long working life.
Features
- Â Advanced geroler gear set design, low pressure of start-up ,high efficiency.
- Â High pressure applications, high torque. has needle bearings design, it can bear high axial and radial forces.
- Â Advance high speed distribution low design, automatically compensate in operating, high volume efficiency, run smoothly at low speed.
Technical Specifications
| Type | Â | 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 |
| Displacement L/r) | Â | 127 | 163 | 200 | 225 | 259 | 295 | 295 | 349 | 473 | 540 | 295 |
| Flow (LPM) | Cont.
Int. |
45 60 | 60 75 | 70
85 |
70 85 |
75 90 |
80 95 |
80 95 |
75 90 |
75 90 |
75 90 |
75 90 |
| Speed (RPM) | Cont.
Int. |
336 450 |
350 440 | 330 425 | 290 365 | 290 350 | 250 315 |
250 315 | 215 365 | 200 240 | 140 170 | 100 120 |
| Pressure (MPa) | Cont.
Int. |
20.5 24 | 20.5 24 | 20.5 24 | 20.5 24 | 20.5 24 | 20.5 24 | 20.5 24 | 20.5 24 | 17.5 19 |
14 17.5 | 10.5 12 |
| Torque (Nm) | Cont.
Int. |
349 408 | 470 548 | 532 602 | 625 710 | 700 790 | 810 930 |
810 930 | 905 1035 | 990 1140 | 980 1240 | 1050 1180 |
Note:
1. Continuous data: The Max. Value of operating motor continuously.
2. Intermittent Data: The Max. Value of operating motor in 6 seconds per minute.
3. A simultaneous max. RPM and max. pressure is not recommended.
4. Optimum operating situation should be at the 1/3～2/3 of the continuous operating situation
