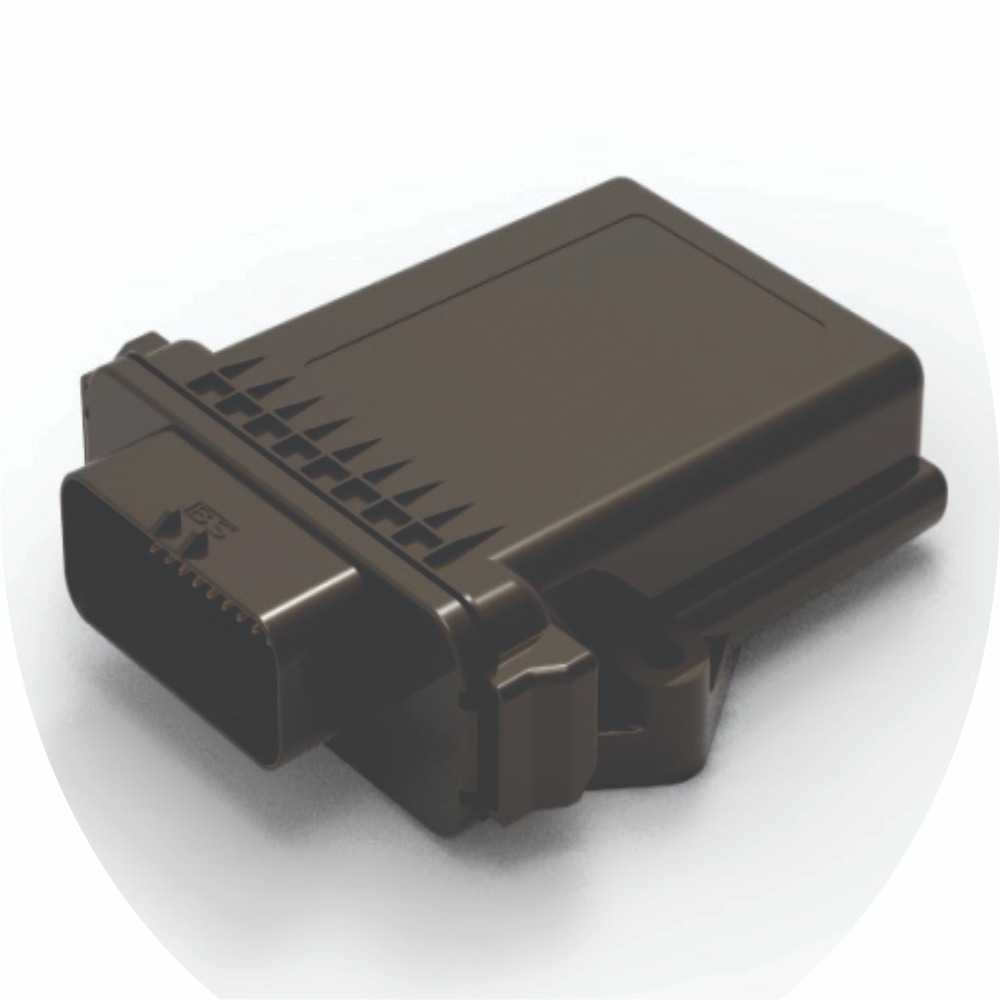

THM – T160 Series – Controller & I/O Module

Description

THM – T160 Series – Controller & I/O Module

The T160 series of I/O modules are used as expansion modules for control systems, providing a more reasonable product mix for controllers and increasing the Flexibility of system design. With faster processors, flexible port multiplexing, compact size and support for up to 2-way CAN2.0B bus communication, the products are widely used in small control systems and automation technology combinations.

The T160 series I/O modules can operate at temperatures from -40 to 70°C and can be used in extreme climatic environments.

The T160 Series I/O modules allow users OTA to remotely upgrade applications and firmware, easily maintain the system, reduce total cost of ownership at all stages of the product lifecycle, and accelerate your digital transformation.

The T160 series I/O modules can be used as controllers for specialized system development and have a superb cost performance. It supports high-level C programming and provides free basic version to speed up the application development process.

Application- T160 Series

Small control systems for the industrial, robotics and construction machinery industries, as well as I/O extensions.

• Vehicle-mounted aerial work platform machinery
• Hoisting machinery
• Material handling machinery
• Industrial, Robotics
• Sanitation machinery
• Agricultural machinery
• Earthmoving machinery
• New energy machine control
• Mining Machinery
• Distributed control

Features of T160 Series – Controller & I/O Module

• 32-bit 120 MHz high-performance processor
• Adopt high-speed SPI interface ferroelectric memory chip (FRAM), 1 billion times erasure life, parameter double backup
  storage, improve parameter reliability.
• 2-way CAN interfaces up to 1 Mbps.
• The product is highly integrated with 8-way outputs and 14-way inputs for a total of 22-way IO ports.
• 4-way 4A high-side PWM/DO output ports, support constant current output, meet the demand of closed-loop control.
• 4-way 2A high-side DO outputs, all with diagnostic function.
• 5-way 4…20mA / 0…5V / DIH input ports, each one software configurable.
• 4-way DIH switching inputs, each of which is software configurable.
• 4-way DIH / DIL switching inputs, each one software configurable.
• 1-way 0…32V/DIH input port.
• 1-way channel 5V voltage output, maximum output voltage 250mA.
