It remains crucial to understand that valves are the part of the hydraulics that regulates the flow and pressure of the hydraulic system, which is crucial for safe and effective use in plenty of applications. At THM Huade Hydraulics, we are fully committed to meeting customers’ expectations by offering them the best hydraulic valve types and services in the market.

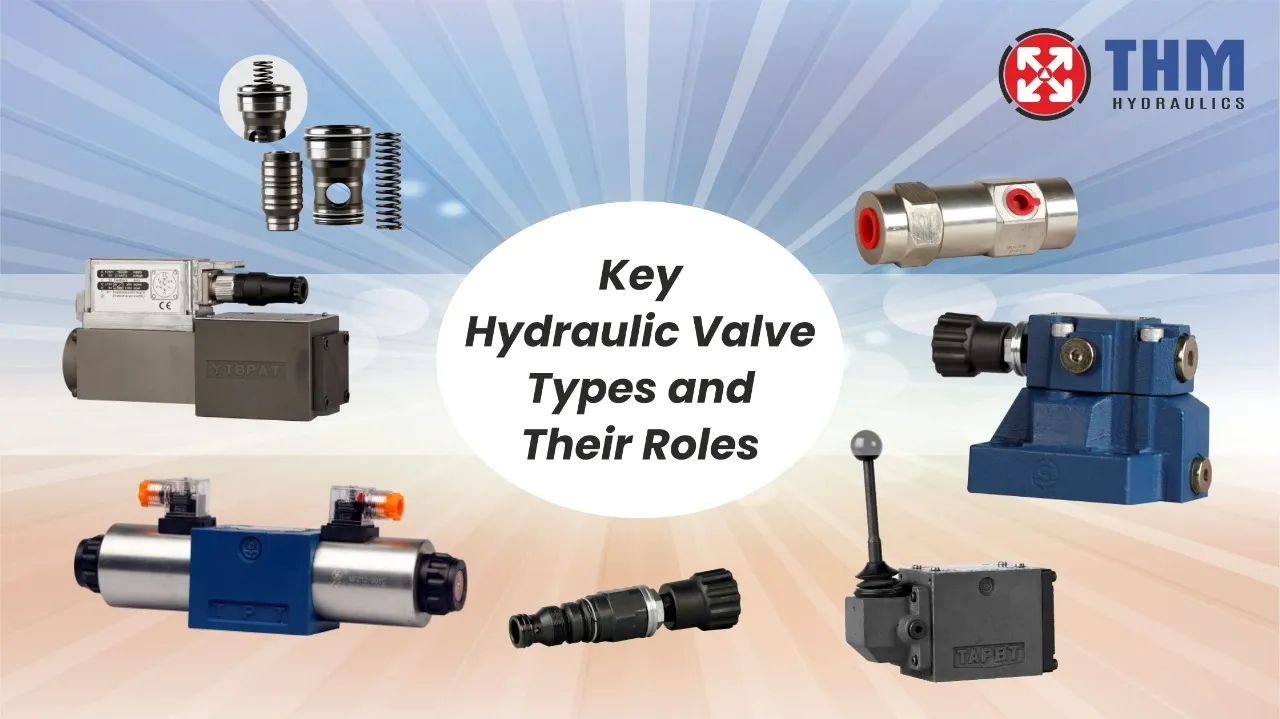

In this guide, you will learn about the most crucial hydraulic valve types and their uses, and why each type is crucial in various industries.
1. Directional Control Valves
Function: Directional control valves are used to control the flow direction of the hydraulic fluid in a system, to decide whether it is to go to an actuator or back to the tank.
Common Uses: Common in applications where fluid flow direction is important as in hydraulic cylinders, motors, and other actuators.
Examples: Monoblock valves, spool valves, and poppet valves.
2. Pressure Control Valves
Function: They control and sustain the operating pressure in the hydraulic system such that it cannot go higher than the recommended limit. They are used to protect hydraulic elements from overpressure and, therefore, prevent their damage.
Common Types:
Relief Valves: Safety relief valves that open automatically when the pressure to which they are set reaches a predetermined level.
Sequence Valves: Divert fluid to secondary circuits when pressure level in the primary shows a certain level.
Applications: Pressure control valves are used in different types of machinery where pressure has to be regulated in order to avoid system breakdown.
3. Flow Control Valves
Function: Flow control valves regulate the flow rate of fluids in the hydraulic system, so as to enable the required speed of the actuators.
Types:
Throttle Valves: Control flow by designing a throughput passage for the hydraulic fluid with minimal cross-sectional area.
Metering Valves: Offer accurate control of flow rates as needed in systems that need variable speed control.
Typical Uses: Frequently used in hydraulic equipment where the flow rate needs to be regulated, for example in conveyors, lifts, and pressing equipment.
4. Check Valves
Function: Check valves enable fluid to pass in one direction while shutting off all the reverse flow to the system that might cause mixing with other harmful fluids or pressure instability.
Design Variants:
Ball Check Valves: Reverse flow prevention, often found in low pressure systems, can be done using a ball.
Poppet Check Valve: Include a poppet that will tightly close to prevent backflow; perfect for high-pressure systems.
Applications: Indispensable in hydraulic circuits where the flow of fluid in one direction is paramount to the circuit’s stability such as hydraulic pump circuits and actuator circuits.
5. Proportional Valves
Function: Proportional valves give flow and pressure control that is variable and automatically changes with the needs of the system.
How They Work: They open or close in response to electronic signals hence are ideal for systems that require frequent changes in flow rates.
Applications: Common in applications that require precision control as seen in computerized numerical control machines and robotics.
Why Choose High-Quality Hydraulic Valves?
When it comes to hydraulic valves, quality and precision are non-negotiable. Substandard or improperly fitted hydraulic valves can lead to inefficiencies, potential system failure, or costly repairs. At THM Huade Hydraulics, we are committed to providing only the highest quality hydraulic valves to ensure your systems operate smoothly and safely.
честные казино с быстрыми выплатами
бездепозитные бонусы казино
играть в лучшем казино на деньги
база казино с бездепозитным бонусом
онлайн казино России
casino oyunu
Whether you are seeking hydraulic valve types for a specific application or need guidance on which hydraulic valves are best suited for your machinery, our team is here to support you with expert knowledge and top-of-the-line products.
