Description

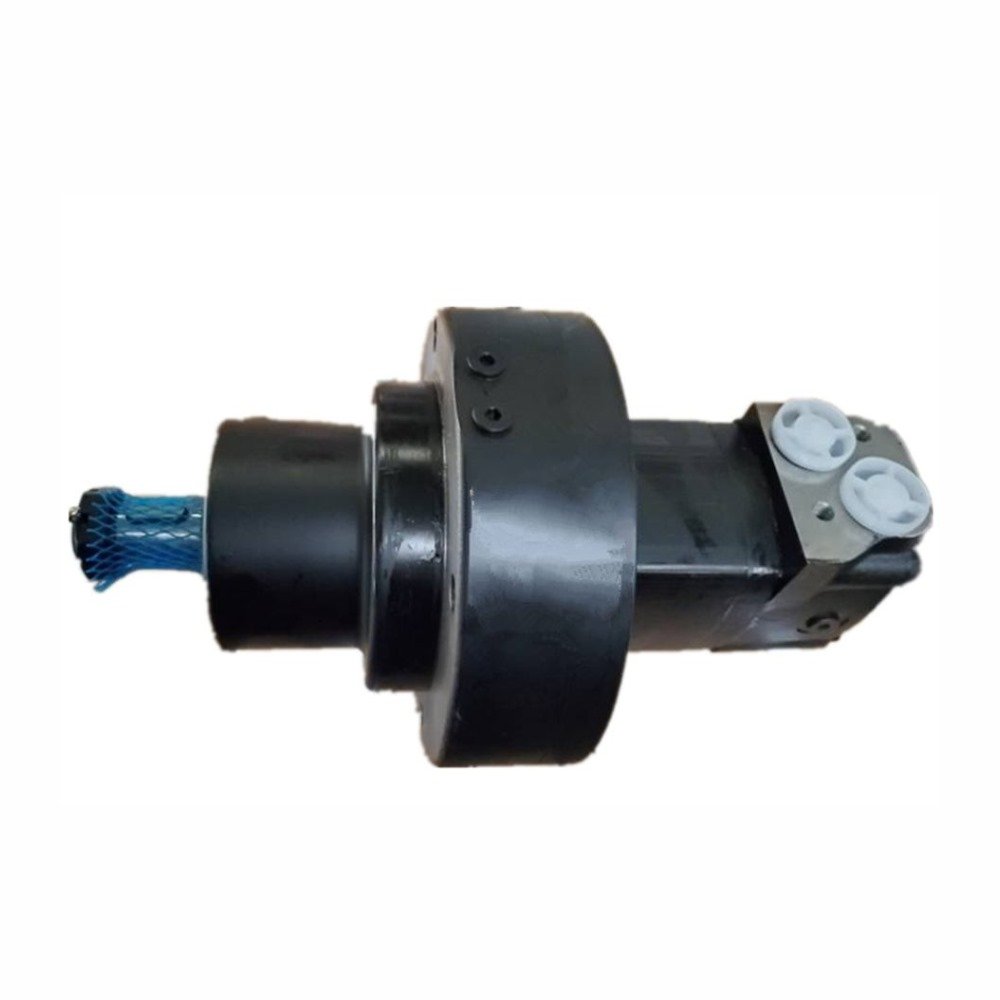

THM – BMSYB – Hydraulic Orbital Motor with Brake
BMSYB – Hydraulic Orbital brake motor with multi-disc brake that is released by a hydraulic pressure, and has good brake performance, the motor has same work performance as BMSY when the brake is released.
Specifications
| Displacement (mL/r) | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 305 | 400 | 500 |
| Release pressure(bar) | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| Brake Torque (Nm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Max. Pressure (bar) | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 160 | 120 |
| Max. Flow (l/min) | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
Key Features
- Built-in multi-disc hydraulic brake to provide a powerful holding and safety.
- Easy start-up and low pressure capacity.
- Higher efficiency and constant torque output.
- Design with heavy and non-stop usage.
- High radial and axial weight bearing ability.
Applications
Perfect in machinery which needs holding or parking brake features like:
- Road and engineering equipment.
- Agricultural and forestry equipment.
- Marine and winch systems
- Conveyor and lifter machines.
- Vertical load holding in industrial machines.
Advantages
- Safe braking hydraulic release system.
- Stable holding capacity at a load.
- Small size to fit into small spaces.
- Minimized maintenance and extended service.
Disadvantages
- Needs hydraulic force to release the brake.
- Slightly above non-brake motors.
- Hydraulic system and hydraulic lines must be correct.
Why Choose THM Huade?
- Brand name that is trusted in good and heavy duty hydraulic motors.
- Quality assurance high technology design.
- Fast access, professional services and low prices throughout India.
