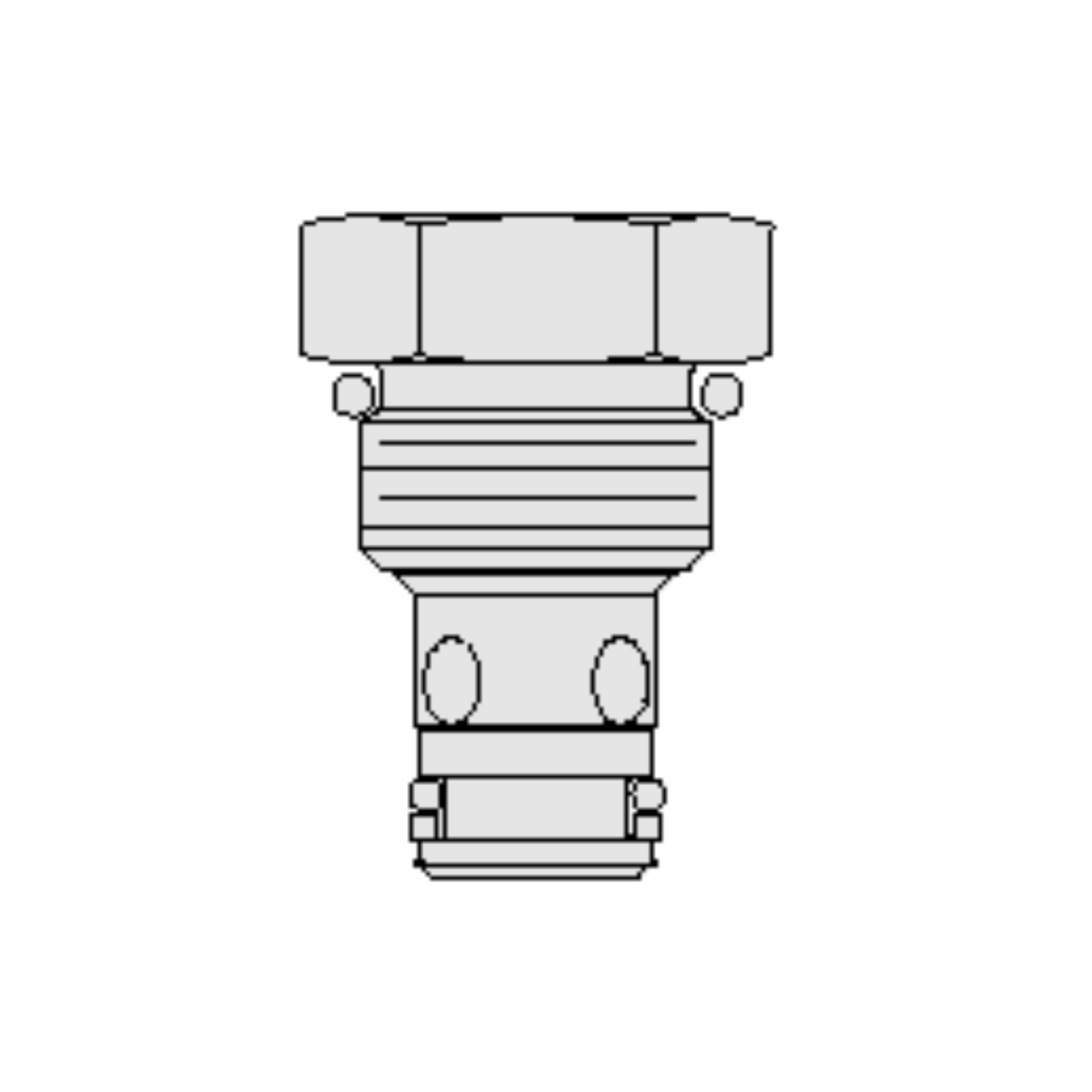

THM – CV08 – Direct Acting Ball Type Cartridge (Check Valve)

Max. Operating Pressure: 315 bar
Rated flow: 30L/min
Internal Leakage: ≤0.3ml/min. Max. at 250 bar
Temperature: -35°C to +120°C
Recommended Filtration: Critical Application: ISO17/15/13
Non-Critical Application: ISO20/18/14
Fluids: Mineral based fluid for other fluid compatibility consult factory
Body Material: Anodized 6061T6 aluminium ally rated at 207 bar
