Description

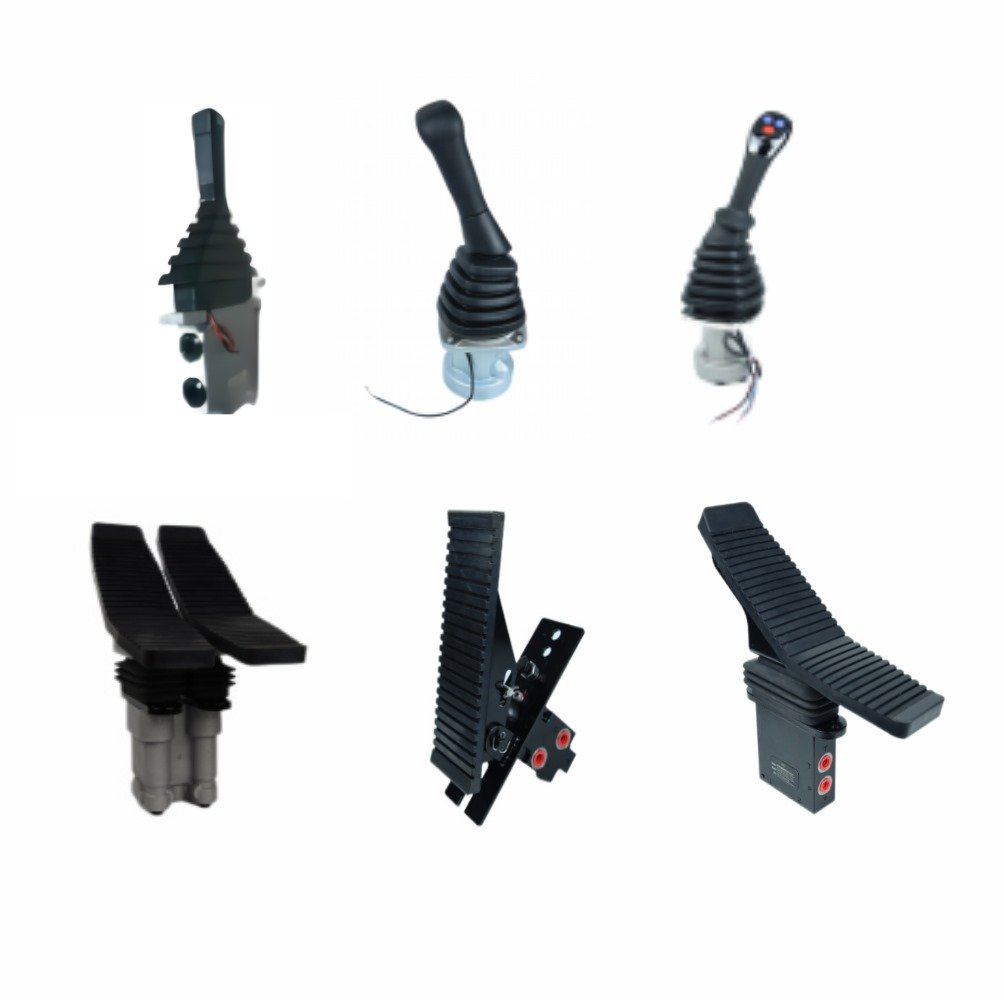

THM – Hydraulic Pilot Joysticks and foot pedal valve provide accurate hydraulic control in 2-way, 3-way, 4-way and 7-way configurations. They are engineered with direct-acting pressure reduction and heavy-duty construction and sealing to provide smooth operation in pumps, motors, and valves in construction, machinery, and industrial hydraulic systems.
Working Principle
The hydraulic disc pilot control device is based on the principle of a direct-acting pressure reducing valve. It consists of an operating lever, two pressure-reducing valves and a protective housing.
All pressure reducing valves have a control valve core, control spring, return spring, and plunger. At rest, the lever is held in place by the return spring that links the control oil ports to the tank. The movement of the handle moves the plunger and compresses the springs and diverts hydraulic flow.
This action closes the back line and opens the pressure line creating proportional hydraulic pressure. The pressure within the oil port is equal to the plunger stroke and the location of the handle. The design allows proportional hydraulic control of pumps, motors and multi-way valves with ease.
The internal parts are not contaminated by a rubber dust cover that guarantees operation in adverse conditions.
Key Features
- Multiple Configurations: comes in 2-way, 3-way, 4-way, and 7-way pilot valves.
- Precise Control: It is based on the working principle of direct-acting pressure reducing valves.
- Long Life: It has a dust cover that protects the apple gadget in rugged surroundings.
- Flexible Operation: Supports the friction positioning as well as ball positioning.
- Proportional Output: Linear response to pressure with the position of the handle to adjust the pressure easily.
- Multi-purpose: Can be used in hydraulic systems with multi-way valves, pumps and motors.
- Safe, & Reliable: it is meant to avoid uncontrolled working conditions and provides stable transitions.
Valve Configurations
Pilot joystick and foot pedal valves are offered in various versions to suit various hydraulic control requirements:
- 2-Way Pilot Valve – Basic on/off directional control.
- 3-Way Pilot Valve – Provides additional control capability in regulating pressure.
- 4-Way Pilot Valve – This is a common type of directional control on a cylinder and actuator.
- 7-Way Pilot Valve – Gives hi-tech multi-purpose hydraulic control.
Operation Options
- Friction Positioning – Stable adjustment and smooth.
- Ball Positioning – Locked positioning to operate accurately.
Safety Considerations
- A control function should not be supported by more than one electrical contact.
- Avoid uncontrolled functionality with safe transition between functions.
- Specifications set extreme conditions that the design was designed to meet.
