When your lift is not moving, your entire operation is halted. Selecting the right DC power pack for hydraulic lift systems is not just about horsepower, it is about reliability, compact design, and long term performance. Whether it is a scissor lift in a warehouse, a stacker on the factory floor, or mobile hydraulic equipment in the field, choosing the correct DC power pack for hydraulic lift ensures smooth and efficient operation.
What is a DC Power Pack of Hydraulic Systems?

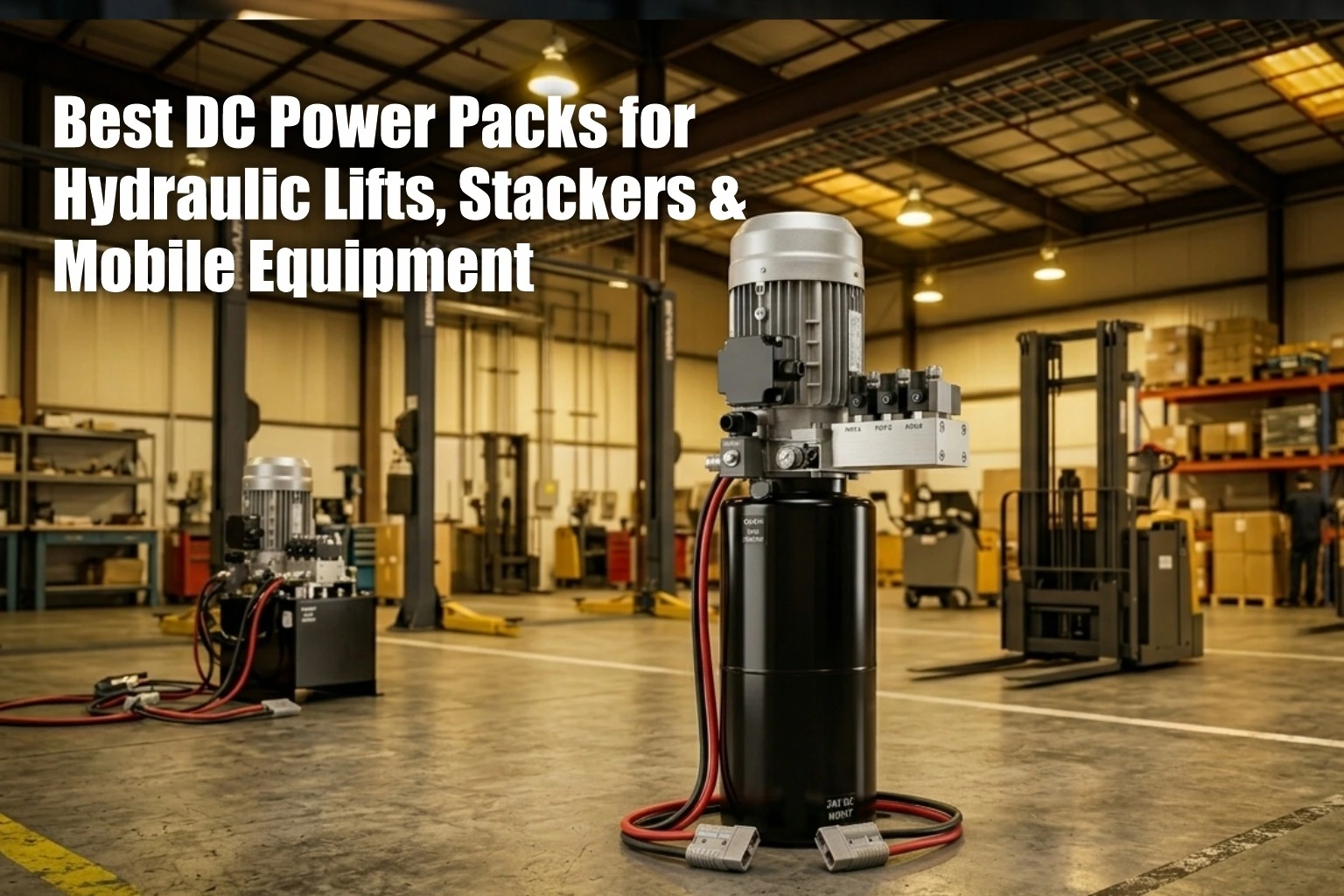

A DC power pack is a hydraulic lift or mobile equipment power pack that features a DC electric motor, hydraulic pump, reservoir, and control valves in a single self-contained unit. It is battery powered (usually 12V or 24 V DC), and is ideal in a situation where there is no AC mains supply.
They are applied in:
- Scissor lifts and platform lifts
- Pallet stackers and reach trucks
- Tail lifts of delivery vehicles
- Mobile cranes and boat trailers
- Agricultural and construction machinery
Key Features to Look for in a Hydraulic Power Pack DC Unit
Not all hydraulic power pack DC units are built the same. The following are the most significant characteristics that make the difference between a trustworthy unit and a low-cost unit:
1. DC Motor Quality
The DC motor hydraulic power pack’s heart is its motor. Locate high efficiency brushed or brushless motors with IP65 or greater protection. Industrial applications require continuous duty ratings (not intermittent).
2. Pump Type & Pressure Rating
The good DC hydraulic power unit should provide:
- Gear pumps to give constant and smooth flow.
- 100 bar to 700 bar depending on use.
- Flow rates were equal to your size and speed needs on the cylinder.
3. Compact Reservoir & Tank Size
A hydraulic power unit is a small unit which is space saving without reduction in capacity. Steel or aluminium reservoirs in the 1–10 litre range are common for mobile equipment. Tanks are sealed and pressure-tested in premium units.
4. Valve Configuration
Single-acting or double-acting solenoid valves are available depending on whether your cylinder extends and retracts under power or retracts by gravity/spring return. Always match the valve type to your cylinder design.
Best Applications for DC Hydraulic Power Units
DC powered hydraulic systems are chosen specifically because they eliminate the need for mains electricity. In this they shine through:
| Application | Voltage | Unit Type |
| Scissor Lift | 12 V / 24 V DC | Mini hydraulic power pack DC. |
| Pallet Stacker | 24V DC | Power pack for stacker |
| Tail Lift (Truck) | 12V / 24V DC | Small hydraulic power unit. |
| Mobile Crane | 24V / 48 V DC | DC motor hydraulic power pack |
| Boat Trailer | 12V DC | Mini hydraulic power pack DC. |
DC Power Pack for Hydraulic Lift: What Makes It Special?
A hydraulic lift power pack is a DC power pack designed to be used in lifting.
Key Benefits:
- Smooth and controlled lifting
- Large output at high pressure loads.
- Consistency in mobile systems.
- Reduced installation complexity
These systems are mostly applied in warehouse lifts, service platforms, and loading equipments.
Mini Hydraulic Power Pack DC vs. Full-Size Units: Which one do you require?
A mini hydraulic power pack DC is the best option in situations where space is restricted, weight is important and heavy to moderate duty cycles. DC hydraulic power units are available in full size, which is more appropriate in the case of continuous-duty industrial use.
- Mini units: less than 5kg, 12V/24V, 1-4 litre tank, intermittent duty.
- Standard units: 5–25kg, 12V/24V/48V, 4–20 litre tank, continuous duty
- Heavy duty: 25kg and above, 24V/48V, 20 litre tank and above, industrial grade.
How to Select the Right Hydraulic Power Pack for Mobile Equipment
Use this easy selection checklist to help you buy a hydraulic power pack to operate mobile equipment:
- Specify your operating voltage (12V, 24V or 48V)
- Divide pressure (bar) and flow rate (L/min) needed.
- Establish duty cycle (intermittent or continuous)
- Measure installation space available.
- Determine type of cylinder (single or double-acting)
- Check environmental requirement (IP rating, temperature range)
- Decide on manual or solenoid valve control
Common Problems and Solutions
Learning the troubleshooting issues will assist in rapid troubleshooting.
Common Issues:
- Power Loss: Electrical connections and check battery.
- Slow Operation: Could be due to low oil or pump wear.
- Overheating: Proper cooling and no overloading.
- Noise or Vibration: Check internal parts on wear.
With adequate care and maintenance, these problems can be avoided.
Final Thoughts
A hydraulic lift DC power pack is a smart and efficient solution to modern industrial and mobile applications. Its design is compact, it runs on a battery and it is reliable in use in lifts, stackers and portable equipment. DC hydraulic systems are now more than ever being necessitated by the need to have flexibility and efficiency in industries.
By choosing the right DC hydraulic power unit and maintaining it properly, businesses can achieve better performance, reduced downtime, and long-term cost savings.
To ensure high performance and reliable hydraulic solutions, THM Huade offers products that have been tested in the industry to satisfy the current needs.
Call now to upgrade your equipment with advanced DC power pack solutions and improve your operational efficiency.
FAQ’s
Q1. What is a DC power pack in hydraulic systems?
A DC power pack is a small hydraulic device that drives a DC motor, which produces pressure and flow to drive hydraulic systems, particularly on mobile or battery-powered devices.
Q2. How does a DC hydraulic power pack work?
It operates on DC motor to run a hydraulic pump that pushes oil out of the reservoir to produce pressure and run cylinders or motors.
Q3. What are the advantages of DC power packs over AC units?
DC power packs are small, energy saving and can be used in mobile applications where supply of power is not available.
Q4. Which DC power pack is best for hydraulic lifts?
The optimal solution is a DC power pack of hydraulic lift having the correct pressure, flow capacity, and motor power depending on the load needs.
Q5. Can DC power packs be used in mobile equipment?
Yes, they find extensive application in mobile equipment such as stackers, forklifts and trailers because of their small size and battery power.
